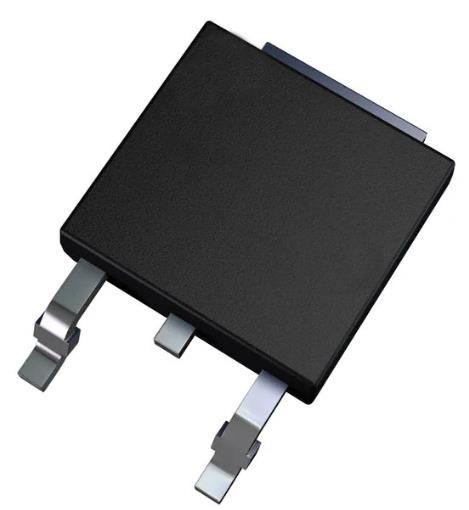

Infineon HEXFET Power MOSFET N Channel 55V 30A DPAK IRLR3915TRPBF

Ask Lasest Price
Brand Name :	Infineon Technologies/International Rectifier IOR
Model Number :	IRLR3915TRPBF
Payment Terms :	T/T
Delivery Time :	2~8 workdays
MOQ :	1 pc
Price :	Negotiated

Add to Cart

Product Details
Company Profile

Infineon HEXFET Power MOSFET N Channel 55V 30A DPAK IRLR3915TRPBF

Product Description

Infineon HEXFET Power MOSFET N Channel 55V 30A DPAK IRLR3915TRPBF

IRLR3915TRPBF Infineon Technologies/International Rectifier IOR HEXFET MOSFET N-Channel 55V 30A DPAK Discrete Semiconductor Products

N-Channel 55 V 30A (Tc) 120W (Tc) Surface Mount D-Pak

Description

This HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area.

Additional features of this product are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in a wide variety of applications.

Features :

Advanced Process Technology Ultra Low On-Resistance 175°C Operating Temperature Fast Switching Repetitive Avalanche Allowed up to Tjmax D-Pak IRLR3915PbF I-Pak IRLU3915PbF Lea

Product Technical Specifications

Part number	IRLR3915TRPBF
Base part number	IRLR3915
EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95

Category	Discrete Semiconductor Products
	Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	HEXFET®
Package	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	14mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	92 nC @ 10 V
Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	1870 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	120W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Base Product Number	IRLR3915
