K78U15-500L Power IC Module K78U Mornsun DC DC Converter Straight Pin

Product Description

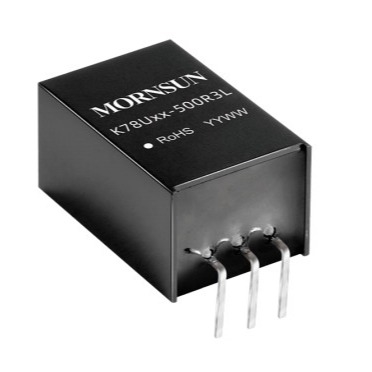

K78U15-500L power IC module Mornsun K78U Wide input non-isolated and regulated single output DC-DC Converter

K78U12-500L Mornsun K78UXX-500(L) Wide input non-isolated and regulated single output DC-DC Converter power IC module

K78U12-500 straight pin

FEATURES:

High efficiency up to 95%

Ultra-wide input voltage range up to 8:1

Operating ambient temperature range: -40 to +85℃

Pin-out compatible with LM78XX linear regulators

Short-circuit protection, over-temperature protection

Low output ripple & noise

Ultra compact SIP package, meet UL94-V0 standards

No heatsink required

Industry standard pin-out

MTBF>2,000,000 hours

APPLICATIONS:

The K78UXX-500(L) series are high efficiency switching regulators and ideal substitutes of LM78XX series three-terminal linear regulators.

The product is featured with ultra-wide input voltage range, high efficiency, low loss, low radiation and no heat sink requiremen.

MODEL SELECTION:

K78U05-500

500 Means : Output Current

05 Means : Output Voltage

U Means : Ultra Wide Input Voltage

K78 Means : Product Series

Selection Guide:

Images :
